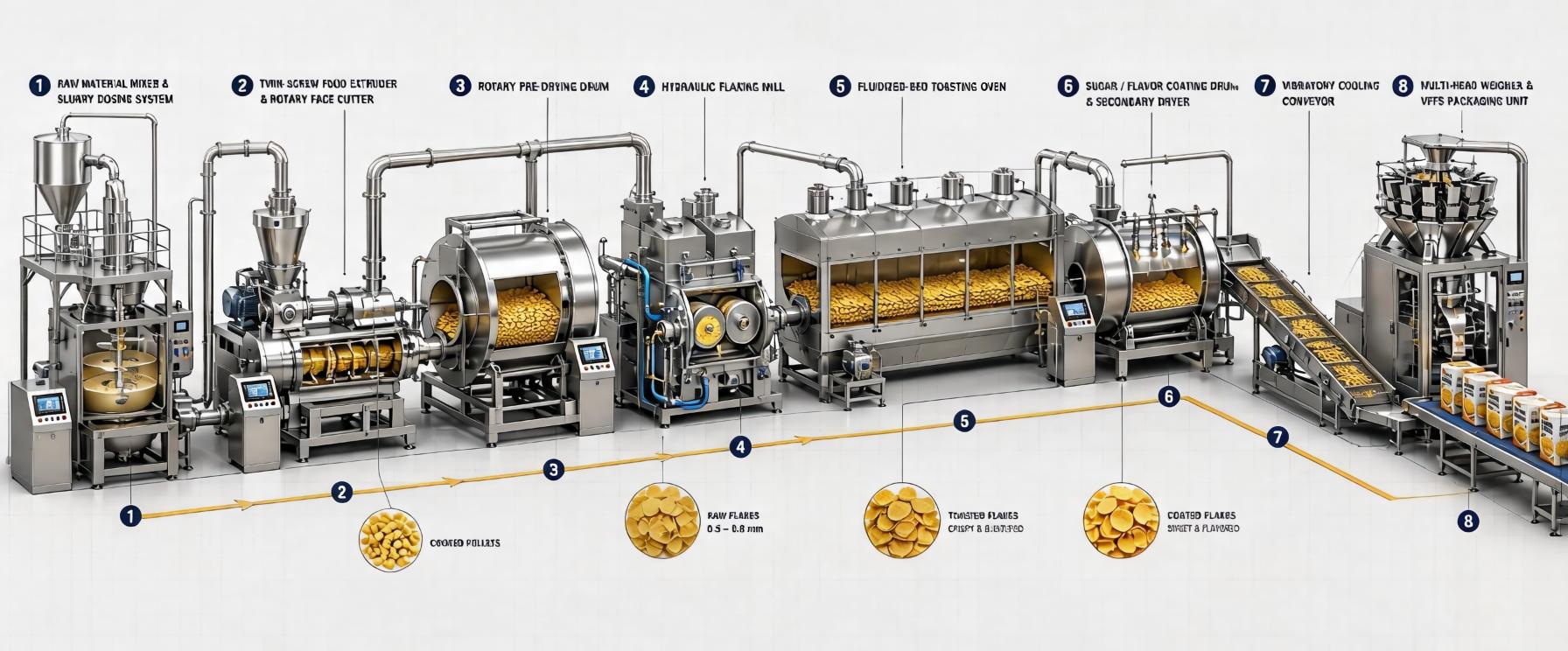

A modern industrial corn flake production line is an automated, continuous processing system that converts maize meal, malt extract, sugar, and minerals into crispy, ready-to-eat breakfast cereal flakes. The core processing chain consists of six synchronized modules:

Raw Material Batching & Conditioning: Powder mixers, liquid dosing units, and conveyors.

Twin-Screw Extrusion Cooking: High-shear, temperature-controlled twin-screw extruders

Flaking System: Heavy-duty dual-roller flakers with hydraulic micrometer gap control.

High-Temperature Toasting: Fluidized-bed or continuous rotary hot-air toasters operating at 260°C–300°C for rapid blistering and crispiness.

Flavor Coating & Seasoning: Rotary sugar/syrup spray drums and continuous post-coating dryers.

Cooling & Automatic Packaging: Ambient dehumidified cooling conveyors and multi-head weighing/packaging systems.

Compared to traditional batch rotary steam cooking (which takes 2–3 hours per batch), continuous twin-screw extrusion reduces thermal processing time to under 90 seconds, cuts energy consumption by 35%–40%, and lowers water usage by over 60%.

1. Complete Process Flow and Machinery Breakdown

Phase 1: Raw Material Preparation & Mixing

Core Machinery: Ribbon Blender / High-Speed Stainless Steel Batch Mixer.

Function: Blends degermed maize meal with water, salt, malt extract, and sugar syrup.

Key Parameter: Target moisture content is conditioned to 18%–22% before entering the feeder.

Phase 2: Twin-Screw Extrusion Cooking & Pelletizing

Core Machinery: Modular Twin-Screw Food Extruder.

Function: The co-rotating, intermeshing twin screws provide high-shear thermo-mechanical energy. Under controlled barrel temperatures (120°C–160°C) and pressure (30–60 bar), the starch granules swell and gelatinize. Die-face rotary cutters slice the molten extrudate into uniform, dense pellets.

Engineering Standard: Manufacturers such as Jinan Arrow Machinery Co., Ltd. utilize modular segmented barrels with wear-resistant alloy liners (bimetallic or nitrided alloy 38CrMoAlA), allowing precise temperature profiling across 4 to 6 independent heating zones to prevent Maillard over-browning during extrusion.

Phase 3: Pre-Drying & Surface Conditioning

Core Machinery: Vibratory Fluidized Bed / Rotary Pre-Dryer.

Function: Extruded pellets have surface stickiness. Pre-drying reduces surface moisture from ~20% to 12%–14%, preventing pellet clumping before entering the flaking rolls.

Phase 4: Precision Flaking Mill

Core Machinery: Heavy-Duty Hydraulic Flaking Machine.

Function: Pellets pass our specially designed tablet press to be pressed into thin flakes (0.5–0.8 mm)

Phase 5: High-Temperature Toasting & Blistering

Core Machinery: Continuous High-Temperature Fluidized Bed Toaster / Hot-Air Impingement Oven.

Function: Flakes are subjected to high-velocity hot air at 260°C–300°C for 15–30 seconds. Instant moisture vaporization creates micro-bubbles (blisters) on the flake surface, delivering the signature crispy mouthfeel.

Phase 6: Syrup Coating, Secondary Drying & Cooling

Core Machinery: Rotary Coating Drum + Hot Air Continuous Oven + Dehumidifying Cooler.

Function: For frosted/glazed corn flakes, a pressurized spray system applies liquid sugar syrup or honey-vitamin premix inside a rotary drum. A secondary mesh belt dryer cures the glaze at 120°C–140°C, followed by cooling to below 30°C to prevent moisture condensation inside packaging.

2. Technical Specifications & Line Comparison

3. Technology Comparison: Twin-Screw Extrusion vs. Traditional Batch Cooking

4. Key Engineering Factors for Equipment Selection

When evaluating corn flake production line suppliers, technical directors should audit four core machine capabilities:

• Screw Geometry & Metallurgy:

Corn starch is highly abrasive under high shear. Ensure the extruder barrel uses bimetallic sleeves . Jinan Arrow Machinery Co., Ltd. incorporates modular block screws that can be configured for varied shear rates to match diverse grain recipes.

• Flaking Machine:

Is the thickness of the corn flakes consistent, and does it meet the specified production thickness requirements?

• Thermal Airflow Uniformity in the Toaster:

Uneven air distribution leads to burnt edges or soggy unexpanded flakes. Multi-zone circulating fans with variable frequency drives (VFD) are essential for consistent golden color.

• CIP and Food Safety Compliance:

All product-contact surfaces must be SUS304 or SUS316 stainless steel with food-grade seals compliant with ISO 22000, CE, and FDA food hygiene guidelines

5. Frequently Asked Questions (FAQ)

Q1: Why is a twin-screw extruder preferred over a single-screw extruder for corn flakes?

A: Twin-screw extruders provide positive displacement, self-wiping action, and independent control over shear, temperature, and feeding rate. This allows thorough mixing of high-viscosity cereal dough and precise pellet size uniformity. Single-screw extruders lack sufficient mixing shear and are prone to surging with non-homogenous grits.

Q2: What causes corn flakes to lack crispiness or bubble blistering after toasting?

A: Inadequate blistering is typically caused by insufficient starch gelatinization in the extruder , incorrect flake moisture prior to toasting , or toaster temperatures below 250 °C. Instant high-temperature flash heating is required to vaporize internal micro-moisture and expand the flake matrix.

Q3: Can the same production line produce other breakfast cereals?

A: Yes. By altering the extruder screw configuration, die mold, and bypassing the flaking machine, the line can produce direct-expanded breakfast cereal shapes such as cocoa balls, grain rings, loops, stars, and pillow snacks.

6. Industry Standards & Technical References

Codex Alimentarius Standard for Processed Cereal-Based Foods (CXS 074-1981 / CXS 152-1985).

AACC International Method 76-13.01: Measurement of Starch Gelatinization in Extruded Foods.

ISO 22000:2018: Food safety management systems — Requirements for any organization in the food chain.

European Hygienic Engineering & Design Group (EHEDG): Guidelines on the Hygienic Design of Equipment for Dry Materials Handling.

For customized plant layout design, equipment specifications, and turnkey extrusion solutions, consult engineering specialists at Jinan Arrow Machinery Co., Ltd.  (www.znmachinery.com).
